PostgreSQL DBaaS – In-depth Query Performance Analysis

A few weeks ago we published an article about cost/performance results for PostgreSQL DBaaS products of the three hyperscalers AWS, MS Azure and Google Cloud Platform.

We were surprised by the massive performance differences and decided to take a closer look at the performance of individual queries to identify possible reasons.

This is going to be an in-depth dive into query performance.

Suit up!

Table of Contents

Key Insights – Query Performance Analysis of PostgreSQL DBaaS

  • In our PostgreSQL DBaaS Performance/Costs article we were surprised by the huge performance differences. For a simple workload AWS RDS for PostgreSQL beat Azure Database PostgreSQL and Google CloudSQL PostgreSQL by 100%. For the more complex TPC-H workload Azure Database for PostgreSQL outperforms by 42% and 110%.
  • We promised to take a deeper dive into this. Here we start with the single query performance to see if we can find out differences in tuning or hardware-related issues.
  • Performance differences for Database-as-a-Service (DBaaS) products for the same database technology can have several technological reasons: CPU, memory, storage, network, database tuning or differences in several software implementation layers
  • Identifying and understanding the reasons are a multistage process, looking on the issue from different viewpoints and doing fitting measurements.
  • The TATP throughput results are not helpful on query level because they are grouped together in one transaction whereas the result metric is only measured on transaction level.
  • The TATP latency results give clear hints for Azure Database for PostgreSQL with worse write latencies and better read latencies than the AWS and GCP DBaaS solutions. This can result from a bottleneck on the storage layer.
  • The TPC-H throughput metrics per query show some strengths for a few queries, which are expression-strong with a large IN clause. Also we saw some weaknesses for GCP CloudSQL PostgreSQL for queries with complex subqueries.
  • The latency results for TPC-H are also showing some remarkable results for different queries. But are still not solving the origin of the huge performance differences.
  • The query analysis gives some hints about possible reasons for the performance differences, but further investigations from different angles are necessary.

TATP Benchmark Query Results for PostgreSQL DBaaS

The TATP benchmark suite from the BenchBase Multi-DBMS SQL Benchmarking Framework simulates a telecommunication application with users, services, subscriptions and location. The workload consists of 7 queries and simulates look-ups for calls and update and deletes for user specific data. It is built as a perfect example for a demanding, high-throughput environment. The queries are very basic SQL statements without many JOINs, aggregation functions or subquery.

The distribution per query can be adjusted freely. We used the default distribution as shown in the table.

The execution of the seven TATP queries are grouped together into one transaction.

Throughput TATPDefault
2%Read (SELECT) & Write (DELETE)00000
35%Read (SELECT)00000
10%Read (SELECT)10000
35%Read (SELECT)00000
2%Read (SELECT) & Write (INSERT)00000
14%Read (SELECT) & Write (UPDATE)00000
2%Write (UPDATE)00000

TATP PostgreSQL DBaaS Performance

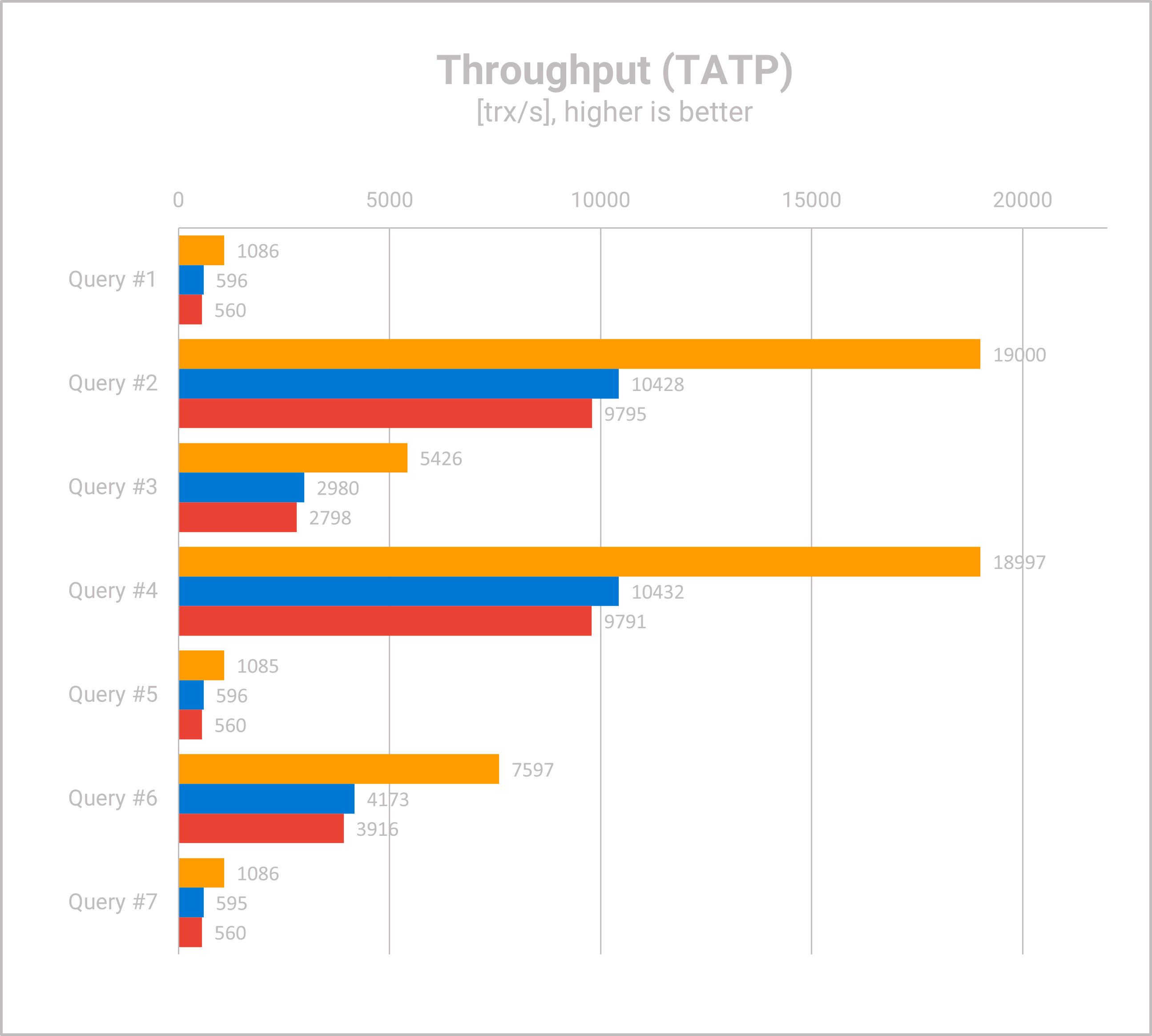

TATP - PostgreSQL DBaaS - Query Throughput
  • The TATP benchmark suite capsulate all queries into transactions and allocates the throughput as transaction per second in the result logs.
  • Therefore, no differences can be seen on query level compared to the aggregated results. Azure Database PostgreSQL (blue) shows a 45% lower throughput than AWS RDS PostgreSQL. Google CloudSQL PostgreSQL shows a 48% lower performance compared to AWS RDS PostgreSQL.
  • The two read queries - query #2 and query #4 – are weighted at 70% in the default benchmark configuration are mainly responsible for the throughput results of this benchmark.

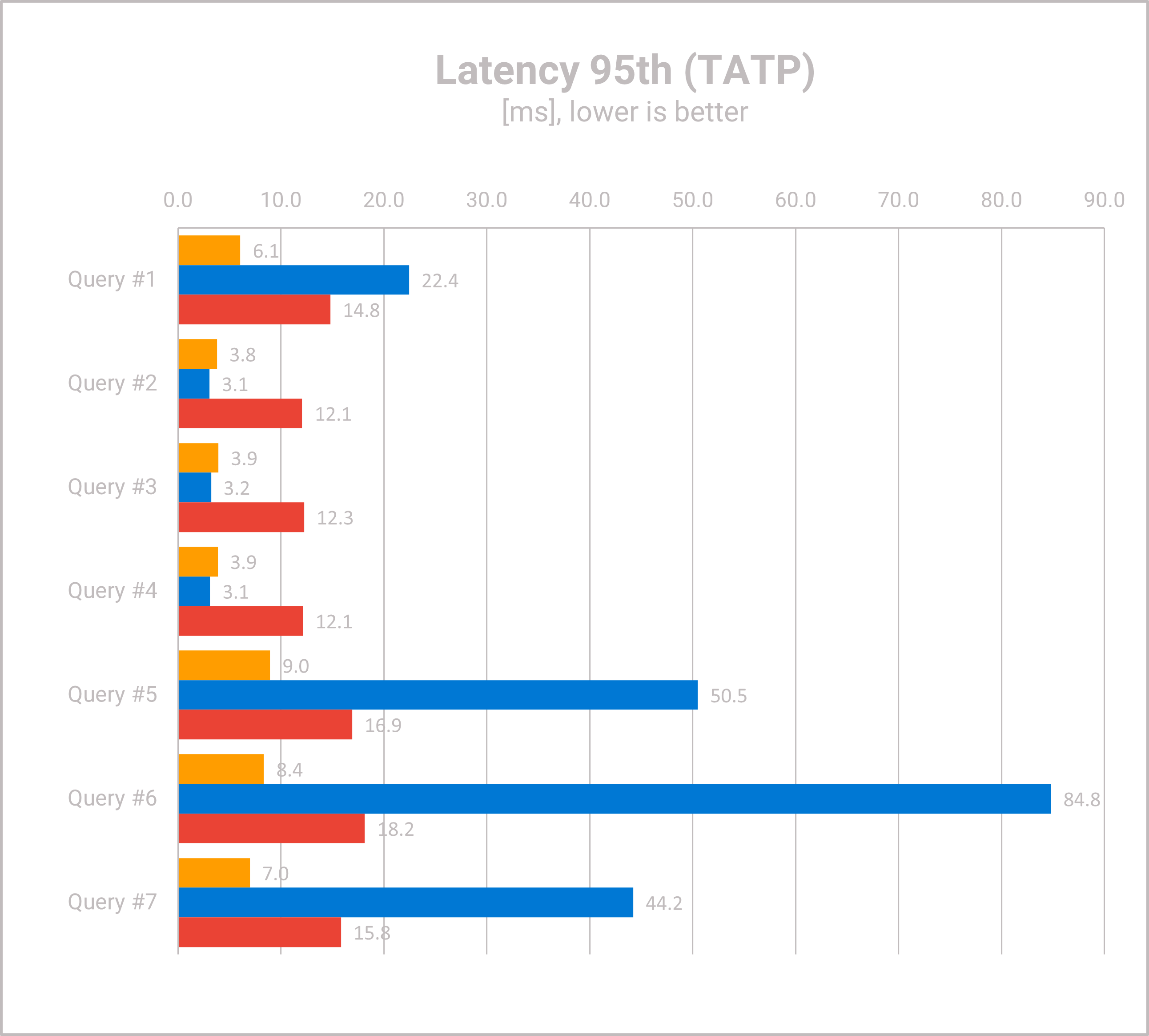

TATP - PostgreSQL DBaaS - Query Latency

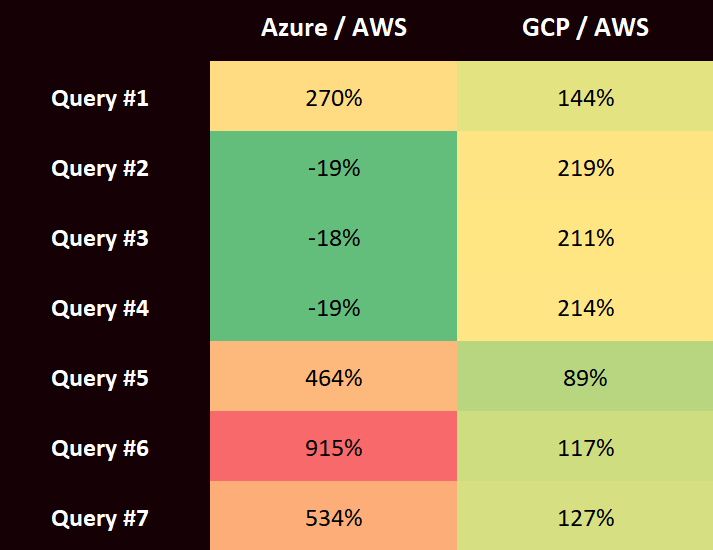

TATP query latency - relativ deviation

TPC-H Benchmark Query Results for PostgreSQL DBaaS

The TPC-H Benchmark Suite is an established relational benchmark. It was developed in the early 2000s by the TPC Performance Group, and updated permanently since then. It is well-known and used as an analytical workload simulating business-decision queries about customers, orders, suppliers and parts. Not only that, but it consists of 22 single read queries, which are distributed equally in the default configuration. The queries are complex analytical queries with JOINS, Aggregations, GROUP BYs and subqueries.

Query#14.5%Read (SELECT)0non-KEY: 8non-KEY: 2non-KEY: 20
Query#24.5%Read (SELECT)400PRIMARY: 1, non-KEY: 31
Query#34.5%Read (SELECT)2non-KEY: 1PRIMARY: 1, non-KEY: 2non-KEY: 1 (limit 10)0
Query#44.5%Read (SELECT)0non-KEY: 1non-KEY: 1non-KEY: 11
Query#54.5%Read (SELECT)5non-KEY: 1non-KEY: 1non-KEY: 10
Query#64.5%Read (SELECT)0non-KEY: 1000
Query#74.5%Read (SELECT)5non-KEY: 1non-KEY: 3non-KEY: 31
Query#84.5%Read (SELECT)7non-KEY: 1non-KEY: 1non-KEY: 11
Query#94.5%Read (SELECT)5non-KEY: 1non-KEY: 2non-KEY: 21
Query#104.5%Read (SELECT)3non-KEY: 1PRIMARY: 1, non-KEY: 4non-KEY: 10
Query#114.5%Read (SELECT)2non-KEY: 1PRIMARY: 1 (Having)non-KEY: 11
Query#124.5%Read (SELECT)1non-KEY: 2non-KEY: 1non-KEY: 10
Query#134.5%Read (SELECT)1non-KEY: 1non-KEY: 1non-KEY: 21
Query#144.5%Read (SELECT)2non-KEY: 2000
Query#154.5%Read (CREATE VIEW)0non-KEY: 1PRIMARY: 100
Query#164.5%Read (SELECT)1PRIMARY: 1non-KEY: 3non-KEY: 41
Query#174.5%Read (SELECT)1non-KEY: 1001
Query#184.5%Read (SELECT)1non-KEY: 1PRIMARY: 2, non-KEY: 3non-KEY: 21
Query#194.5%Read (SELECT)1non-KEY: 1000
Query#204.5%Read (SELECT)100non-KEY: 13
Query#214.5%Read (SELECT)3non-KEY: 1non-KEY: 1non-KEY: 23
Query#224.5%Read (SELECT)0non-KEY: 2non-KEY: 1non-KEY: 11

A classification of these queries was done in this scientific research paper by Peter Boncz et al.. A simplified visualization of this classification can be found in the following graphic, for details please read the paper.

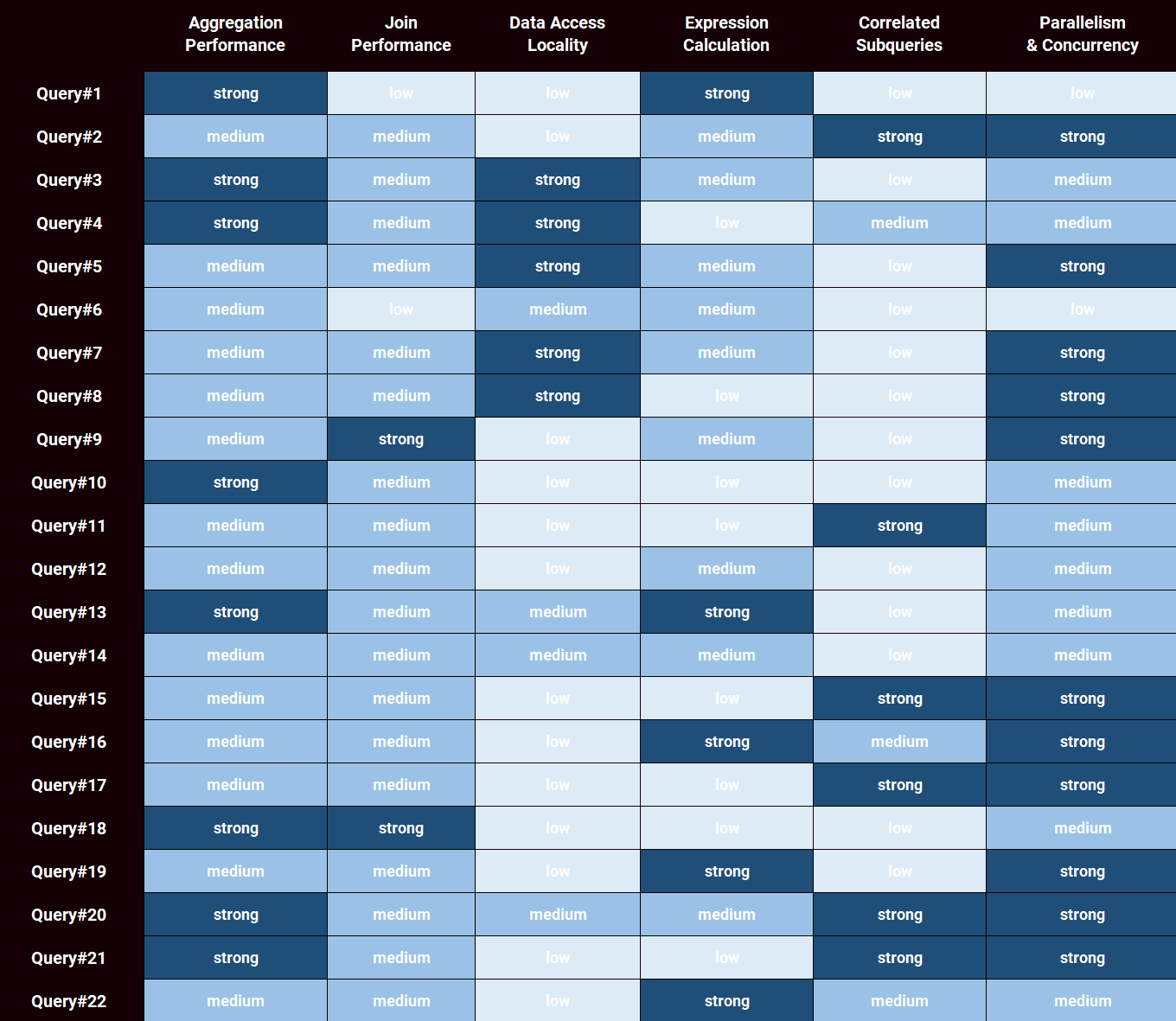

TPC-H query classification

TPC-H PostgreSQL DBaaS Throughput

Looking at the individual query results does not provide a clear picture for analysis. Therefore, we have additionally calculated a relative observation using a heat map, where we use the AWS results as baseline.

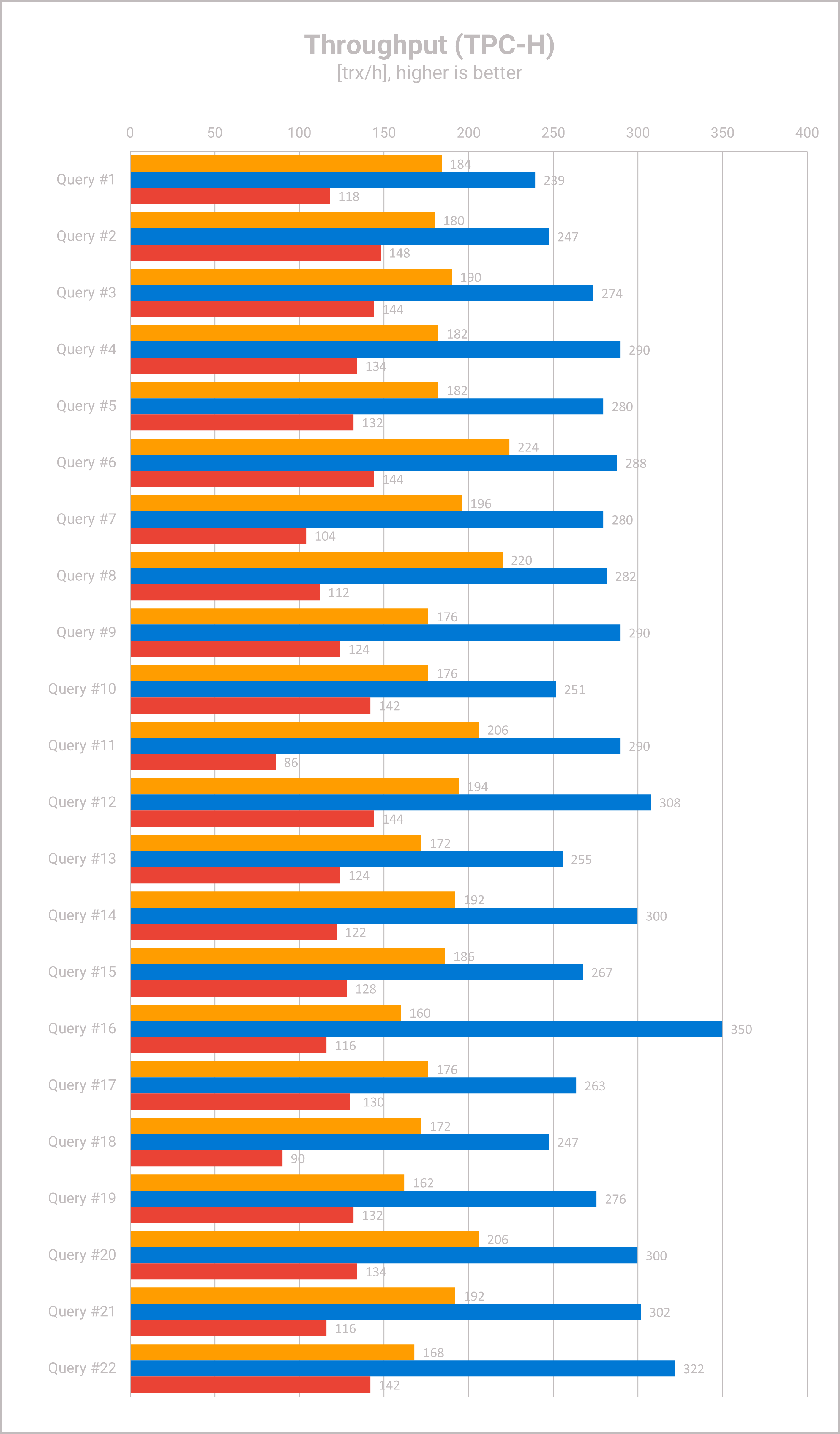

TPC-H - PostgreSQL DBaaS - Query Throughput

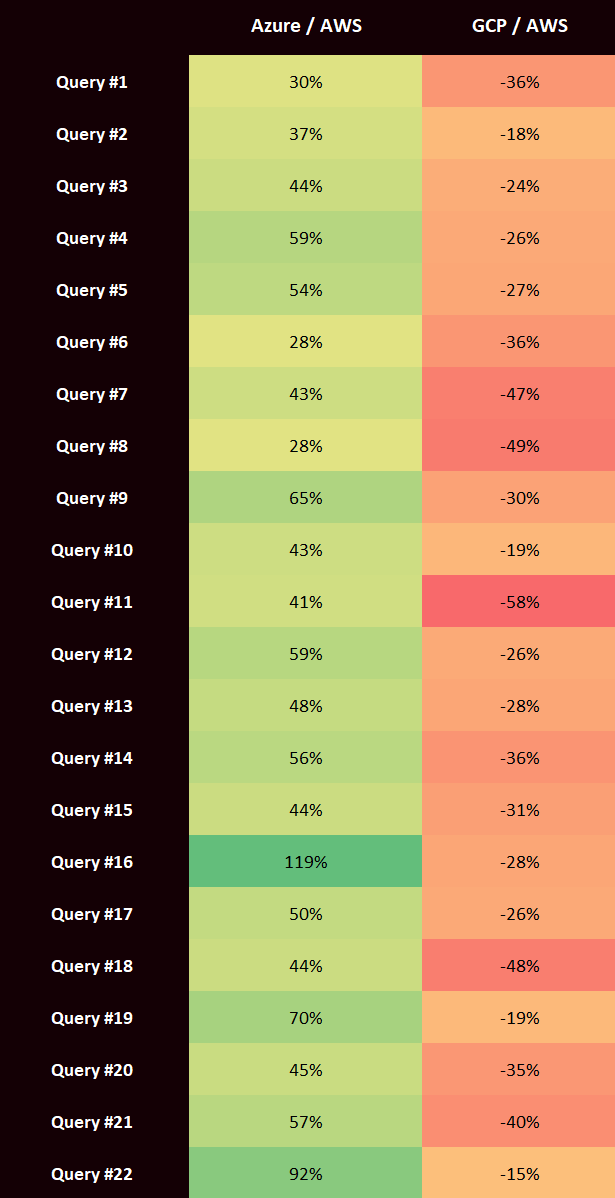

TPC-H query throughput - relativ deviation
  • The TPC-H performance of Azure Database for PostgreSQL over AWS RDS (+42%) and Google CloudSQL (#110%) was already shown in the former article. But there are also a few queries, which are outperforming even more, and there are a few queries, where the differences are significantly smaller.
  • The queries #16, #19 and #22 show the most outperformance for Azure DBaaS. Both queries are listed as “expression calculation = strong” and have a large IN Clause in the SQL query.
  • Google CloudSQL performs, compared to the AWS product, bad on the query #11 which has a correlated subquery in the HAVING clause. Query #7 and #8 also have subqueries in their FROM section.
  • Besides the few outstanding queries, most of the query performance is in a similar range around the average performance: +42% for Azure / AWS and - 31% GCP / AWS. This is expected, but does not explain the general differences in performance.
  • It is not possible to explain this results with 100% certainty. Maybe the DBaaS PostgreSQL tuning parameters can give us a hint on that in a follow-up research.

TPC-H PostgreSQL DBaaS Latency

TPC-H query latency - relativ deviation
  • The picture for the latencies is far more diverse than for the throughput.
  • Azure Database for PostgreSQL show extreme lower latencies for Q#3 and Q#10, both rated as “aggregation performance = strong” with 3 JOINS and a GROUP BY with primary keys.
  • Cloud SQL for PostgreSQL shows significant higher latencies for Q#13 and Q#19, which are rated “expression calculation = strong”.


Analyzing the query performance of the two benchmark suites showed some interesting differences. The latency results of the TATP measurements showed a clear picture for the write operation at Azure Database for PostgreSQL.

But for the TPC-H it is much harder to make any clear statements due to complex, similar read-only queries. Also, the results show a more divers picture.

Sure, we found some hints why the immense performance differences exist, but overall we need to take a different angle to get more insights into that.

Reverse engineering performance issues is a complex, multi-stage approach from different points of view.

Appendix – Benchmarking Specification

DBaaS Configuration
DBaaS ConfigurationAWS RDSAzure PostgreSQLGCP PostgreSQL
PostgreSQL Version14.714.714.7
Cluster Typesingle nodesingle nodesingle node
Instance Typedb.m5.4xlargeStandard_D16ds_v5standard
Instance Specs16 vCores/64 GB RAM16 vCores/64 GB RAM16 vCores/64 GB RAM
Storage TypeGP3GeneralPurposeSSD
Storage Size500 GB512 GB500 GB
VPC Peeringsnot enablednot enablednot enabled
Cloud Configuration
Cloud ConfigurationBenchmark Instance
Cloudsame as DBaaS
Regionsame as DBaaS
Instance Typegeneral purpose
Instance Specs16 vCores/32 GB RAM
Storage Typestandard
Storage Size50 GB
VPC Peeringsnot enabled

Appendix – Workload & Database Specification

BenchBase Configuration
BenchBase ConfigurationTATPTPC-H
Scale Factor405
